Create a Certificate

A certificate must be created for each user that is going to use the VPN system. In Descriptive and Common Name, enter the username the user uses to log on to Active Directory. Strictly speaking Descriptive name can be anything but usernames should be unique anyway.

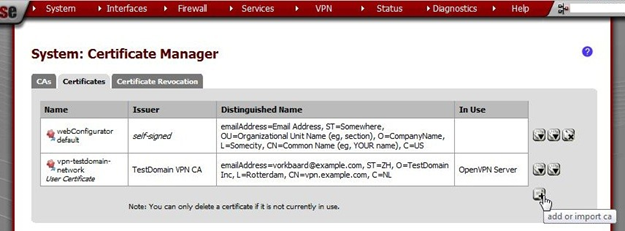

Go to System > Cert Manager (not User Manager!), Certificates tab and click+

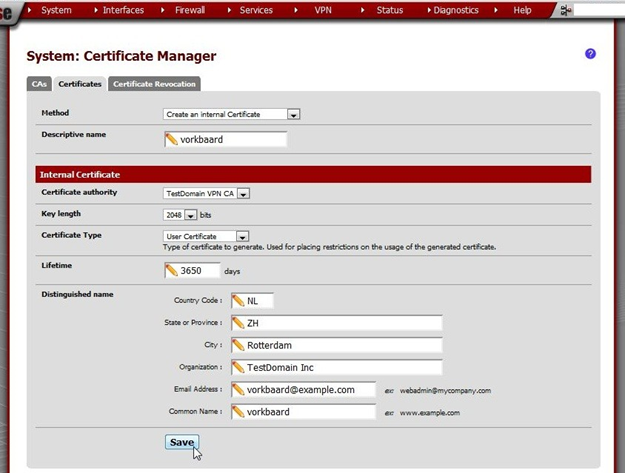

Enter these values:

Method	Create an internal Certificate
Descriptive name	[Username of the user that will be using the vpn connection] In some cases this is case sensitive. I tend to stick to all lowercase for that reason. It doesn’t really matter but keep it in mind if the connection can’t be established.
Certificate authority	TestDomain VPN CA
Key length	2048
Certificate Type	User Certificate
Lifetime	3650 days Unless the user has a temporary account.
Distinguished name	Fill out the preferences here.
Common Name:	[see Descriptive name]

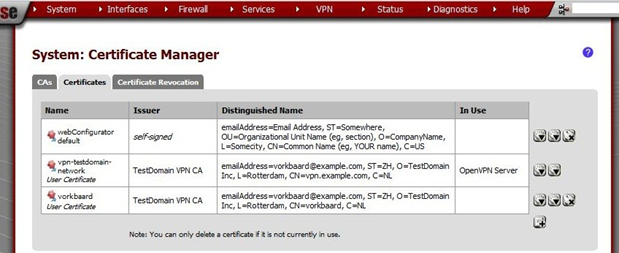

Note the entry in the Certificate list.
