Set up outbound NAT at Site B

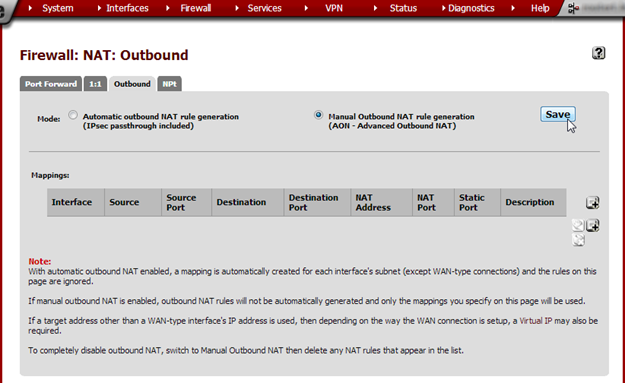

From the Firewall menu, choose NAT and click on the Outbound tab. Select Manual Outbound NAT rule genera- tion (AON – Advanced Outbound NAT) and click Save. On the next page, click Apply Changes.

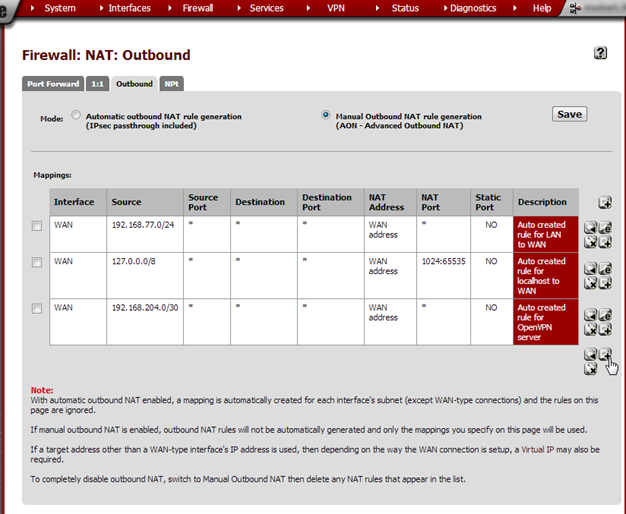

A couple of rules are generated automatically but we need to add a NAT entry for Site A’s subnet. Click on the +button.

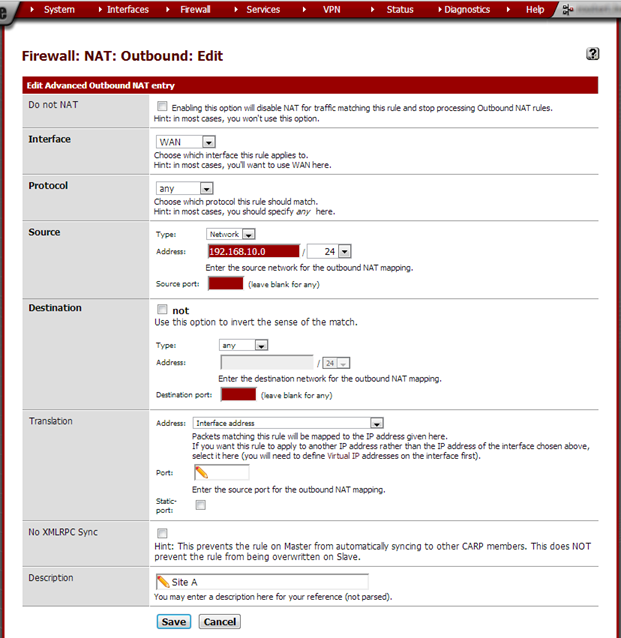

Enter these values:

Do not NAT	not checked
Interface	WAN	Unless using a different interface for the VPN
Protocol	any
Source	Type: Network Address: 192.168.10.0/24 Source port: leave empty	Site A’s subnet
Destination	Type: any Destination port: leave empty
Translation	Address: Interface address Port: leave empty Static port: not checked
No XMLRPC Sync	Leave unchecked
Description	Site A

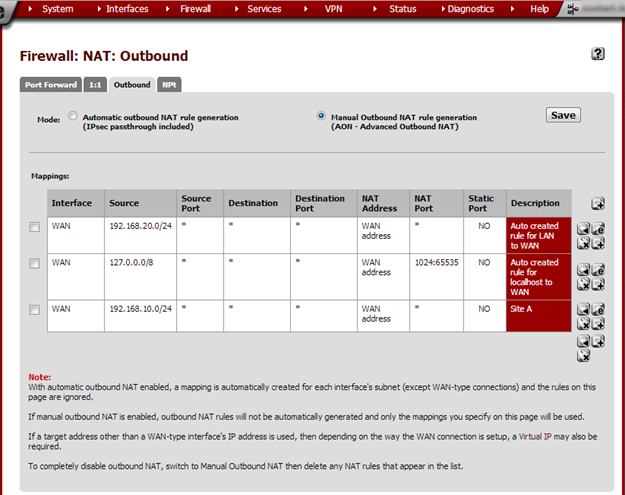

Click Save and on the next page click Apply Changes.
