Set up the IPsec tunnel Phase 2

Site A Configuration

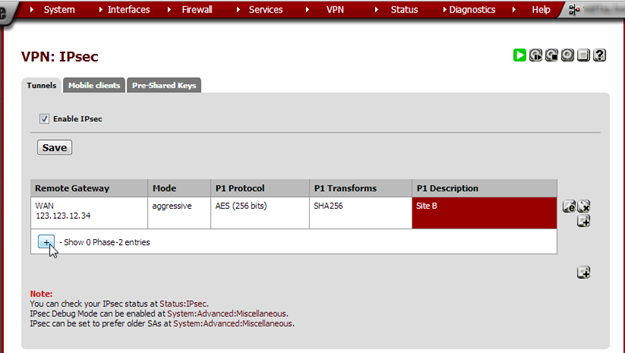

Click [Image unavailable in the source]+ under the Phase 1 entry. It will show an overview of all available Phase 2 entries. Since we haven’t made any yet none are shown.

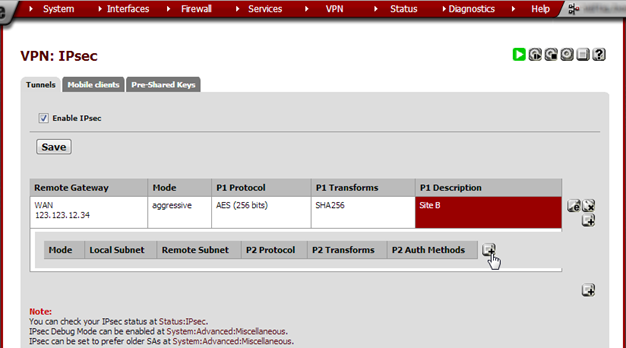

[Image unavailable in the source]Click  + to create a new Phase 2.

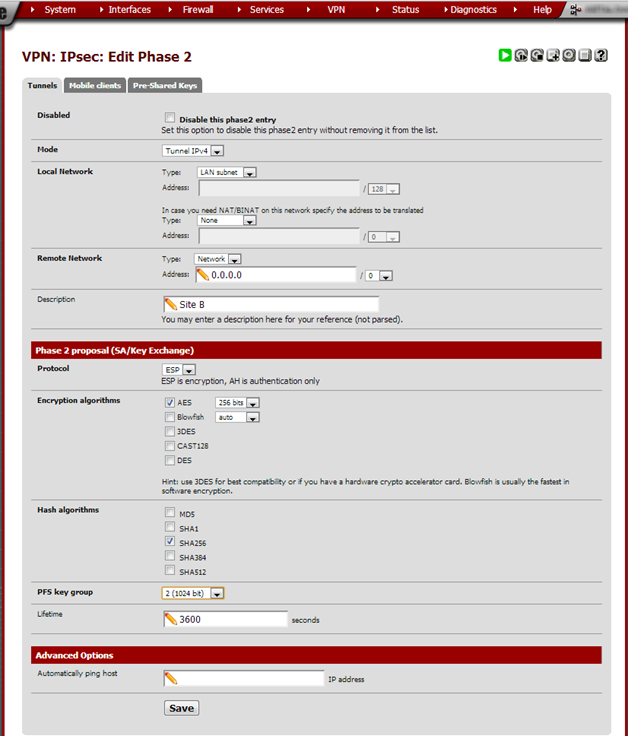

Enter these values:

Field	Value	Notes
Mode	Tunnel IPv4
Local Network	Type:    LAN  subnet.     NAT/BINAT type: None.
Remote Network	0.0.0.0/0	This tells AZTCO-FW to route everything over this interface.
Description	Site B
Protocol	ESP
Encryption     algo- rithm	AES 256 bits
Hash algorithm	SHA256
PFS key group	2 (1024 bit)
Lifetime	3600
Automatically ping host	Enter a hostname or IP address to keep the tunnel alive.	In my experience this is not necessary.

Click Save and on the next page click Apply Changes.

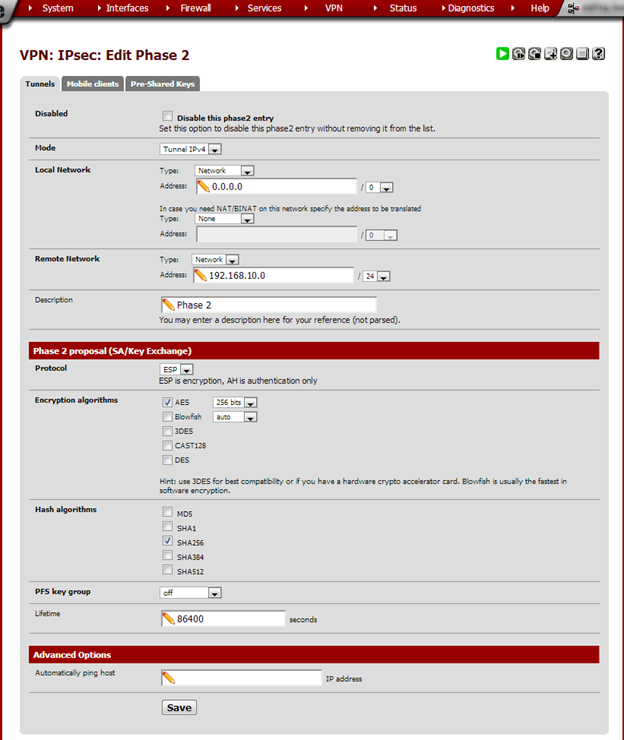

Site B Configuration

Remote Network, Type: Network Local Network, Address: 0.0.0.0/0 Remote Network, Address: Site A’s LAN subnet Use the same Phase 2 proposal and Advanced options as in Site A.

Click Save and then Apply Changes.
